RossbyWaveSpectrum.jl

A Julia code to compute the spectrum of inertial waves in the Sun.

Installation

To install the code, run ./INSTALL.sh. This requires bash and curl to run, and will download and install julia using the installer juliaup. It will also install the requisite project dependencies. The project uses Julia v1.10.2, which may be installed independently as well, in which case one only needs to instantiate the environments as listed in installjulia.sh.

You may install the code for a specific Julia version using ./INSTALL.sh -v version, e.g. for julia version 1.10.0 as ./INSTALL.sh -v 1.10.0. This will instantiate the environments accordingly, and will also set up the jobscripts to use the specified version of Julia. If you also wish to resolve the environments (i.e. fetch those dependencies that are compatible with the specified Julia version), then you may pass the flag -r to INSTALL.sh. This may be necessary if the dependnecy versions that were used while developing the project are incompatible with the julia version that is to be installed. Note that changing the dependency versions may lead to bugs or to the results being non-replicable (although this should usually not be the case).

A part of installation process requires matplotlib to be available. If one is using an anaconda distribution located in their user directory, they may need to export PYTHON=<path to python> before running INSTALL.sh. So, for example, one may run

PYTHON=$HOME/anaconda3/bin/python ./INSTALL.sh

the first time the code is being installed (subsequent reinstallations will reuse the path that has been set). However, the code may be run without matplotlib as well, as it is only required for plotting the results.

Users running the code on a heterogeneous cluster (where the login and compute nodes have different CPU architectures) may want to set the environment variable JULIA_CPU_TARGET appropriately in their shell rc file. One may check the CPU architecture by running

julia> Sys.CPU_NAME
"skylake-avx512"

in the julia REPL on each node.

As an example, a valid setting may be

export JULIA_CPU_TARGET="generic;skylake-avx512,clone_all;icelake-server,clone_all"

if e.g. the login node has skylake-avx512 and the compute node has icelake-server. Setting this is particularly important if one node has Intel processors whereas the other has AMD ones. This should be set before running INSTALL.sh.

Starting Julia

Typically the code is run multi-threaded, so one needs to specify the number of threads while launching Julia. As an example, if we want to use 5 Julia threads, this may be done as

julia +1.10.2 --project=. --startup-file=no -t 5

The flag --project should point to the path to the code. The example above assumes that you are in the top-level code directory (RossbyWaveSpectrum.jl).

The flag --startup-file=no is optional, and may only be necessary if one has added a custom startup file that may interfere with the code.

The flag -t 5 indicates that 5 Julia threads are to be used. Typically, we would want to use as many Julia threads as the number of azimuthal orders m that we want to solve for. This ensures that all ms run in parallel. Note that this differs from the number of BLAS threads that are used in solving the eigenvalue problem. If the code is being run on a cluster, this is automatically inferred from the number of allocated cores and the number of Julia threads. Alternately, this may be specified through the environment variable MKL_NUM_THREADS.

Running the code

Before running the code, we would want to set the location where the output will be written to. This is determined by the environment variable SCRATCH, which typically corresponds to a user's scratch directory on a cluster. The output files will be written to $SCRATCH/RossbyWaves, and the path will be created if it doesn't exist. Note that if SCRATCH is not specified, it will be set to homedir() by default in the code.

The first step is to load the package

using RossbyWaveSpectrum

We start by computing the radial operators. We define some parameters:

nr, nℓ = 40, 20 # number of radial and latitudinal spectral coefficients
r_in_frac = 0.65 # inner boundary of the domain as a fraction of the solar radius
r_out_frac = 0.985 # outer boundary of the domain as a fraction of the solar radius
ν = 5e11 # kinematic viscosity coefficient in CGS units
trackingrate = :hanson2020 # track at 453.1 nHz; may also be a number in nHz

and compute the radial operators as

operators = radial_operators(nr, nℓ; r_in_frac, r_out_frac, ν, trackingrate)

Some of the common keyword arguments are demonstrated here. There are various other keyword arguments which may be passed to specify domain and model details. See radial_operators for details.

The second step is to obtain a function that will be used to compute the spectrum. We need to specify whether we seek equatorially symmetric or antisymmetric solutions, and the model of differential rotation that is used (see RossbyWaveSpectrum.solar_differential_rotation_profile_derivatives_grid for details). We define some parameters

V_symmetric = true # indicates that V is symmetric about the equator, alternately set to `false` for antisymmetric
rotation_profile = :solar_latrad_squished # model of differential rotation to be used in the calculation

and compute the spectrum function as

spectrumfn! = RotMatrix(Val(:spectrum), V_symmetric, rotation_profile; operators)

Finally, we compute and save the spectrum for a range of azimuthal orders using the pre-defined parameters. We define

mrange = 2:6 # the range of azimuthal orders for which to compute the spectra

and compute the spctrum using

save_eigenvalues(spectrumfn!, mrange; operators)

This will save the results to a file named "solar_latrad_squished_nr40_nl20_sym.jld2" in the output directory given by RossbyWaveSpectrum.DATADIR[]. We may also specify filtering parameters as keyword arguments to save_eigenvalues, which will be passed on to filter_eigenvalues. The filtering may be performed later as well, as a post-processing step.

Loading the results

The results are stored in jld2 files that are read in using the package JLD2.jl. We provide an interface to read these in:

julia> Feig = FilteredEigen(datadir("solar_latrad_squished_nr40_nl20_sym.jld2"))
Filtered eigen with m range = 2:6

This will load the solutions for all m into a struct that may be passed directly to the plotting functions. To obtain the solutions for one m, we may index into Feig with that m:

julia> Feig[2]
Filtered eigen with m = 2

The eigenvalues and eigenvectors for this m may be obtained as

julia> λs, vs = Feig[2];

julia> λs
4-element Vector{ComplexF64}:
 0.4981592422711335 + 0.014103483029526536im
 0.6967785422145395 + 0.00046298002829591573im
  1.469490820471635 + 0.06912096500018029im
 1.6005757491199637 + 0.03673314713783im

In the sign convention chosen in the code, a positive imaginary part of the eigenfrequencies indicates that the solutions are damped, and a positive real part indicates retrograde solutions. These are corrected for when plotting the solutions, so that the real part of the frequencies appear in the bottom right quadrant.

The operators and the parameters that were used to generate the solutions are saved in the FilteredEigen struct. The former is directly stored as Feig.operators, whereas the latter are stored in the field kw.

julia> Feig.kw
Dict{Symbol, Any} with 3 entries:
  :V_symmetric      => true
  :filterflags      => NODES|SPATIAL_RADIAL|SPATIAL_EQUATOR|BC|EIGVEC|EIGVAL|EIGEN
  :rotation_profile => :solar_latrad_squished

Filtering the solutions further

Occasionally, it might be necessary to filter the solution set further to reduce the number of modes retained in the spectrum. This may be done through the function filter_eigenvalues. As an example,

julia> Feig_filt = filter_eigenvalues(Feig, filterflags = Filters.SPATIAL, n_cutoff = 5);

For a full list of flags that may be passed to filterflags, check Filters. For the filter parameters that may be passed as keyword arguments, check the keys of RossbyWaveSpectrum.DefaultFilterParams. This also lists the default values that are used when computing the solutions.

Plotting the results

The plotting functions are provided by the module RossbyPlots. This resides in a separate environment, which must be activated first using

julia> import Pkg

julia> Pkg.pkg"activate RossbyPlots"

Alternately, one may press the ] key from the julia REPL to enter the interactive Pkg mode, and execute

(RossbyWaveSpectrum) pkg> activate RossbyPlots
  Activating project at [...]

(RossbyPlots) pkg>

and finally press the backspace key to get back to the REPL prompt.

The plotting functions use matplotlib, which must be available on the system, and accessible to PyPlot. The plots shown here were generated using matplotlib version 3.4.3. See the installation section on instructions to set this up if necessary.

We may plot the spectrum as

julia> using RossbyPlots

julia> spectrum(Feig_filt)

This will produce the following plot:

We find several ridges of eigenvalues.

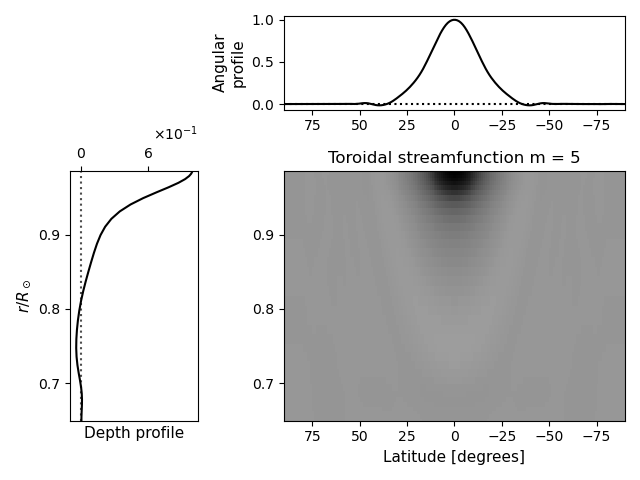

We may plot one eigenvector — e.g. the $12$th eigenvector corresponding to $m=5$ — as

julia> eigenfunction(Feig, 5, 12)

This produces the following plot:

By default, this plots the real part of V, but the field and component to be plotted may be specified through parameters to eigenfunction. Alternately, all the components of all the fields may be plotted using eigenfunctions_allstreamfn.

Help on the plotting functions is available in the REPL, which may be accessed through the ? key. So e.g. ?spectrum will display a detailed list of parameters that may be passed to spectrum.
